NRC license to be sought for GEH PRISM Advanced Reactor

  • prismFour U.S. nuclear energy firms have teamed to develop the basis for seeking an NRC design certification under 10CFR50 for the GE-Hitachi (GEH) PRISM advanced nuclear reactor. (PDF slide deck)
  • Team members plan to seek DOE funding as part of a public / private partnership. If the team receives an award of the federal funding, it would be focused on the technical preparation of an NRC application.
  • The effort is being led by High Bridge Energy Development Co. with participation by GE Hitachi Nuclear Energy (GEH), Exelon Generation, and AEDCOM subsidiary URS Nuclear LLC
  • This is the second teaming arrangement by GEH for the PRISM reactor.  In November 2016 GEH and Southern Nuclear agreed to work jointly on the development and licensing of the sodium-cooled fast reactor.

PRISM is a sodium-cooled, high-energy neutron (fast) reactor design.  The PRISM design has benefited from the operating experience of EBR-II, an integral fast reactor prototype, which was developed by Argonne National Laboratory, and operated for more than 30 years at the Idaho National Laboratory near Idaho Falls, Idaho. (PDF Technical Brief)

“We believe that no U.S. fast spectrum reactor technology has more testing, design or operational basis than PRISM. PRISM is well positioned to provide a regulatory path for licensing and deployment of advanced reactor technology in the U.S,” said Steve Maehr, CEO of High Bridge Energy Development Company. (PDF Press Release)

_________________

On the webLicensing the Integral Fast Reactor / ANS Nuclear Café  11/02/2011

“What we know now is that there are no technical gaps that would preclude a licensing application if using known technology. Gaps might arise if a developer chooses to use a new fuel which would need testing. That process could be completed faster if simulation and modeling tools could be brought to bear on the problem.”  – John Sackett

_________________

Timeframe for Licensing Process & CNSC Effort

The press statement by GEH and High Bridge did not specify a time frame for submitting a license application to the NRC.  A spokesman for High Bridge told this blog in an email that licensing discussions have not yet started with the NRC.

Without having details on the schedule to seek a license, one could assume that even if the partnership has all of the technical data it needs, the effort could still take a year or longer to put it into an electronic format that could be accepted by the agency.  If the data is incomplete, that timeline would be difficult to estimate. The NRC’s review cycle would likely be longer than the 42 months usually set for LWR type reactors.

Separately, on March 13, 2017, GEH and ARC Nuclear announced they will jointly develop and license an advanced small modular reactor (aSMR) based on their sodium-cooled reactor technologies.

GEH and ARC Nuclear plan to enter the Canadian Nuclear Safety Commission’s Vendor Design Review process, the companies said in a joint statement.

“This collaborative commercialization program also includes the near-term goals of confirming projected construction and operating costs, as well as the identification of a lead-plant owner/operator for the joint aSMR,” the companies said.

GEH and ARC Nuclear have been  developing separate advanced reactor designs based on the EBR-II, an integral sodium-cooled fast reactor prototype.

The ARC-100 is a 100 MWe aSMR designed for efficient and flexible electricity generation and can operate for up to 20 years without refueling. GEH’s PRISM reactor is a 300 MW+ reactor designed to refuel every 12 to 24 months and has primarily been focused on closing the fuel cycle by, among other things, consuming transuranics.

PRISM Technology Profile

In its report on the GEH partnership with Southern Nuclear, World Nuclear News noted that Prism is a sodium-cooled fast neutron reactor design built on more than 30 years of development work. It benefitedng from the operating experience of the EBR-II prototype integral fast reactor which operated at the USA’s Idaho National Laboratory – formerly Argonne National Laboratory – from 1963 to 1994. According to GEH, the history, testing, design and operational experience underlying Prism makes the design well positioned to continue the licensing process. (Power MagHistory of the PRISM Concept)

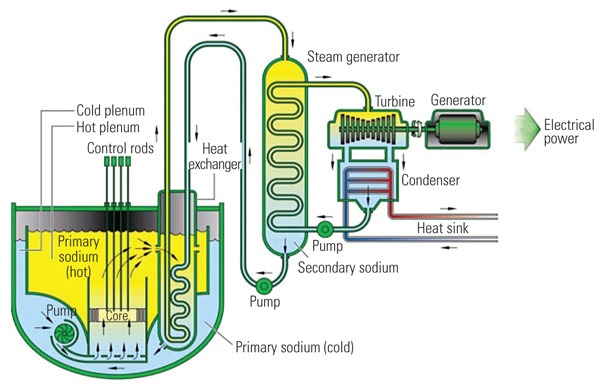

PRISM Conceptual Image

Each Prism reactor has a rated thermal power of 840 MW and an electrical output of 311 MW. Two Prism reactors make up a power block, producing a combined total of 622 MW of electrical output.

Using passive safety, digital instrumentation and control, and modular fabrication techniques to expedite plant construction, the design uses metallic fuel, such as an alloy of zirconium, uranium, and plutonium. It can therefore be used to close the nuclear fuel cycle, recycling used nuclear fuel to generate energy.

According to GEH, commercialized Prism technology could be used eventually to consume all the nuclear material contained in the world’s used nuclear fuel. Assuming 178,000 tonnes of nuclear material are contained in worldwide stocks of nuclear fuel and a per household consumption of 3400 kWh per year, the company claims this could provide enough energy to power the world’s households for up to 200 years.

Reducing the UK Plutonium Stockpile

GEH has proposed the Prism reactor as a possible option for managing the UK’s plutonium stockpile. In 2013 The Engineer, a UK publication, provided its readers with a detailed walkthrough of the PRISM proposal to the Nuclear Decomissioning Authority (NDA).

The UK has a lot of plutonium — the largest civil stockpile in the world, totaling some 112 tonnes, most of it from reprocessing spent fuel over the years. The question of what to do with Britain’s plutonium has vexed subsequent governments for decades.

GE offered PRISM technology to the UK because it believes it offers a better way of treating the plutonium than converting it into MOX. Britain’s plutonium stockpile is complicated as not every storage canister contains the same isotope of plutonium.

Different reactor processes produce different isotopes; and this poses problems for converting the fuel into MOX, because isotopes have to be selected carefully.

The article goes on to describe the fuel fabrication process as proposed by GEH. According to an interview with Eric Loewen, Chief Consulting Engineer for the PRISM reactor project, the plutonium oxide would be mixed with uranium oxide, then reduced to a metal by electrolysis. This is made into an alloy with zirconium, then cast into slugs that would be stacked in a stainless steel case to form a fuel pin.

Readers are referred to the cited URL above for a longer explanation of the process.

# # #
